Mini Project: Intro Animation

Let's recap what we've learned in the basic tutorial and implement a simple web intro animation. You can check the final result here.

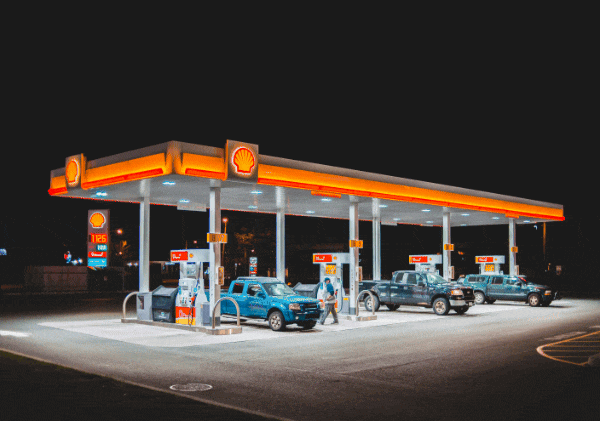

The final result of the intro animation.

Initial Setup #

Create a new page with container div and useGSAP hook.

app/page.tsx

"use client";
import { useGSAP } from "@gsap/react";
import { useRef } from "react";
import gsap from "gsap";

export default function IntroAnimationPage() {
  const containerRef = useRef<HTMLDivElement>(null);
  useGSAP(() => {}, { scope: containerRef });

  return (
    <div ref={containerRef}></div>
  );
}

Container #

Set our container div to fill the entire screen and add a background image to it. Also make it relative which prepares it for overlay elements we'll add next.

app/page.tsx

...
    <div
      ref={containerRef}
      className="relative min-h-screen w-screen bg-cover bg-center"
      style={{
        backgroundImage:
          "url('https://images.unsplash.com/photo-1604282742204-1e7bb6ffbd9f')",
      }}
    ></div>
...

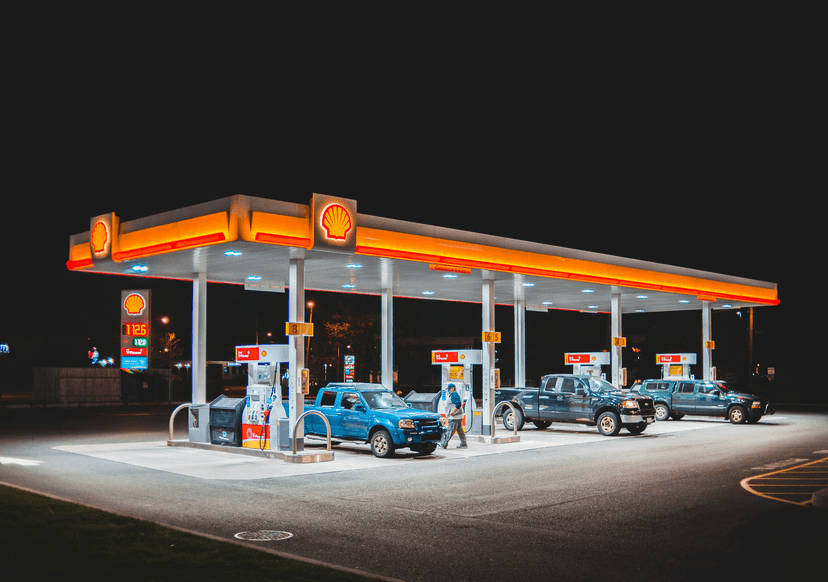

The container div is now filled with the background image and takes up the entire screen.

Color Overlay #

We'll add an overlay div inside the container div that will be animated to reveal the content of the container.

absolute inset-0 z-10 will make the overlay div fill the entire container and set the z-index to 10.

flex items-center justify-center will center the content that will contain the logo and loading bar.

Add gsap-background-overlay as an id. We'll use this to target the overlay div in our GSAP animation.

app/page.tsx

...
    <div
      ref={containerRef}
      className="relative min-h-screen w-screen bg-cover bg-center"
      style={{
        backgroundImage:
          "url('https://images.unsplash.com/photo-1604282742204-1e7bb6ffbd9f')",
      }}
    >
      <div
        id="gsap-background-overlay"
        className="bg-gray-200 absolute inset-0 z-10 flex items-center justify-center"
      ></div>
    </div>
...

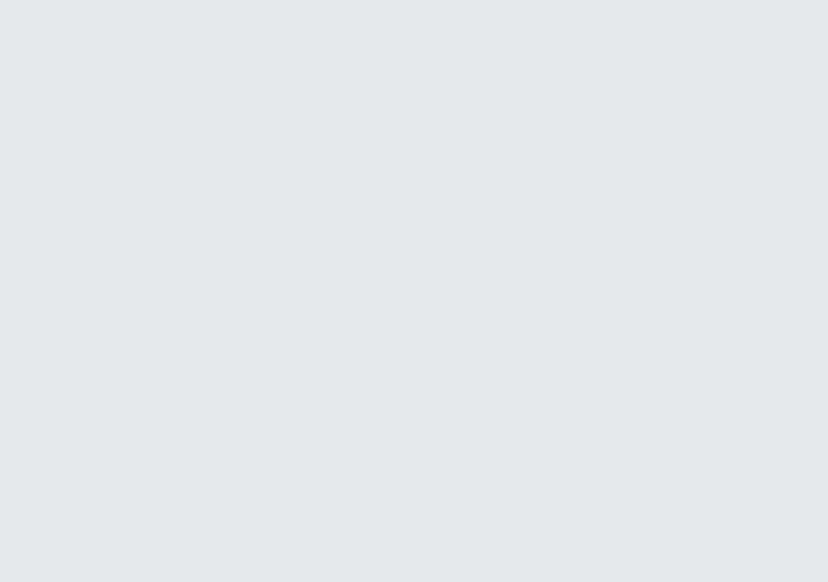

The overlay div is now added and will cover the entire container div.

Logo & Loading Bar #

Add a py-2 px-10 relative div inside the overlay div to contain the logo and loading bar.

Inside the div, add a h1 tag with id="gsap-logo-text" then add the logo text and apply some text styles.

Now we'll add the loading bar with id="gsap-loading-bar" that will cover the logo text using absolute positioning. Try to change the value of the right property to see the progress effect that we will animate later.

app/page.tsx

...
    <div
      id="gsap-background-overlay"
      className="bg-gray-200 absolute inset-0 z-10 flex items-center justify-center"
    >
      <div className="py-2 px-10 relative">
        <h1
          id="gsap-logo-text"
          className="text-[#dd1d22] font-sans text-6xl font-bold"
        >
          Shell
        </h1>
        <div
          id="gsap-loading-bar"
          className="bg-[#fec60b] absolute top-0 bottom-0 left-0 right-[100%]"
          aria-hidden="true"
        ></div>
      </div>
    </div>
...

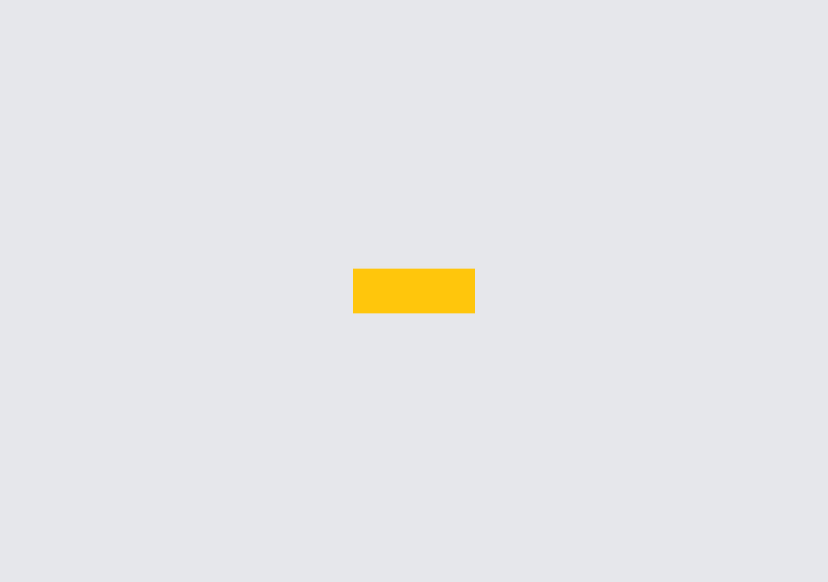

The logo text and loading bar with property right-[0%].

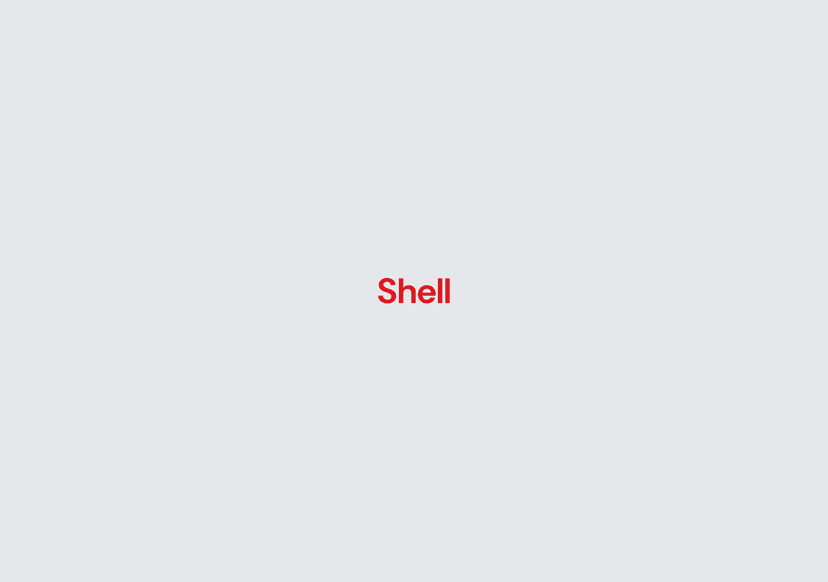

The logo text and loading bar with property right-[100%].

With the HTML structure and styling in place, let's move on to the fun part: GSAP animation.
